| Material | |
| Insulator: | Glass filled PBT UL 94V-0,Black |
| Contacts: | Copper Alloy,Gold/Tin plating over Nickel |
| Support bracket: | Zinc Alloy,Nickel plating |
| Outer Shell: | SPCC.Nickel plating |
| Fastener: | Copper Alloy,Tin plating |
| Electrical: | |
| Contact Resistance: | 30MΩ max. at DC 100mA |
| Insulator Resistance: | 500MΩ min. at 500V DC |
| Withstanding Voltage: | 500V AC/rms 50Hz for 1 minute |
| Current Rating: | 1 Amp AC/DC |
| Enviromental: | |
| Operating Temperature: | -55° C~+105° C |
| Soldering T emperature: | 265° C,6s max |
| Features | 1, Elastic contacts provide reliable re-plugging2, Zinc alloy die casting base maintains dimensional stability3, Screw and reinforcement foot fixing to improve the bond between the connector and the PCB4, Comply with EMS and ESD anti-interference5, Provide 14,20,26,36,50,68,100pin contacts6, Lock Screw and Latch Clip Type |

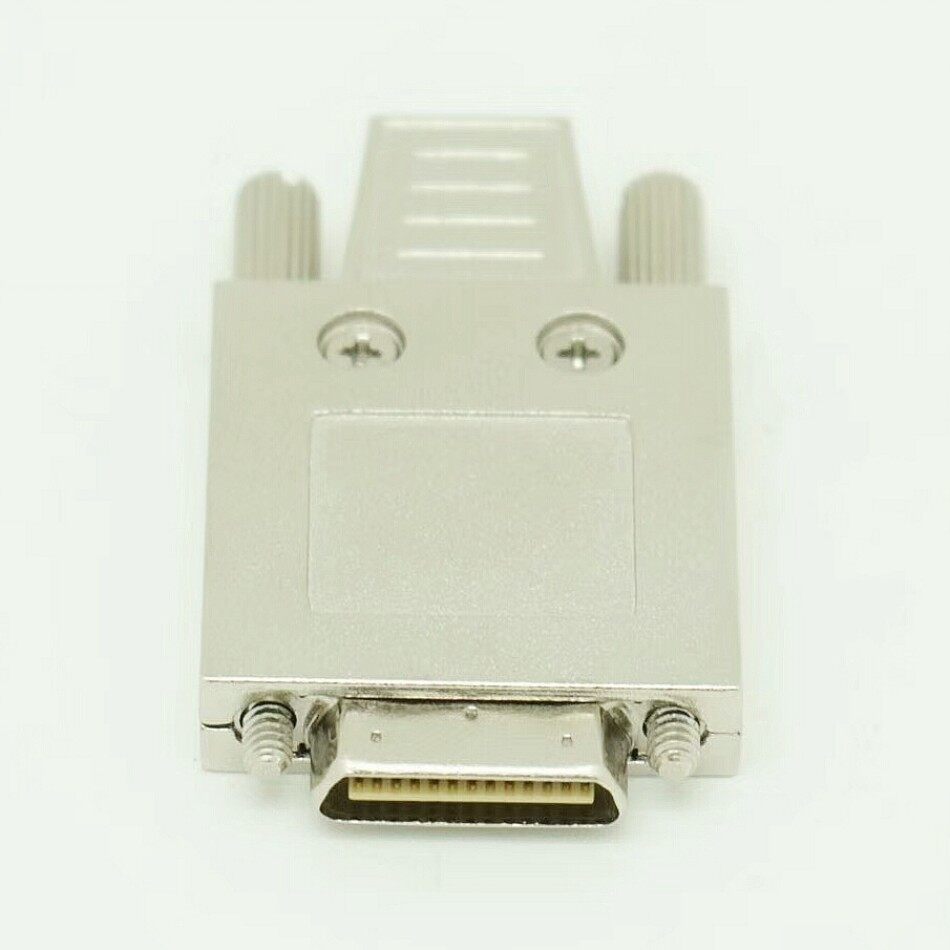

| SCSI Connectors | A stand-alone processor standard for system-level interfaces between computers and smart devices(hard disk, floppy drive, optical drive, printer, scanner, etc.).SCSI is an intelligent universal interface standard.SCSI uses ASPI(Advanced SCSI programming interface)standard software interface to allow the drive to communicate with the SCSI adapter installed inside the computer.SCSI interface is a high-speed data transmission technology widely used on small computers.The SCSI interface has a wide range of applications, multi-tasking, large bandwidth, low CPU usage, and hot swap.The main body plastic is glass fiber reinforced polyester, the high temperature welding is not deformed, the outer shell material is glass polyester fiber, which has reliable durability, and the metal wire clip provides cable shielding grounding characteristics. |
