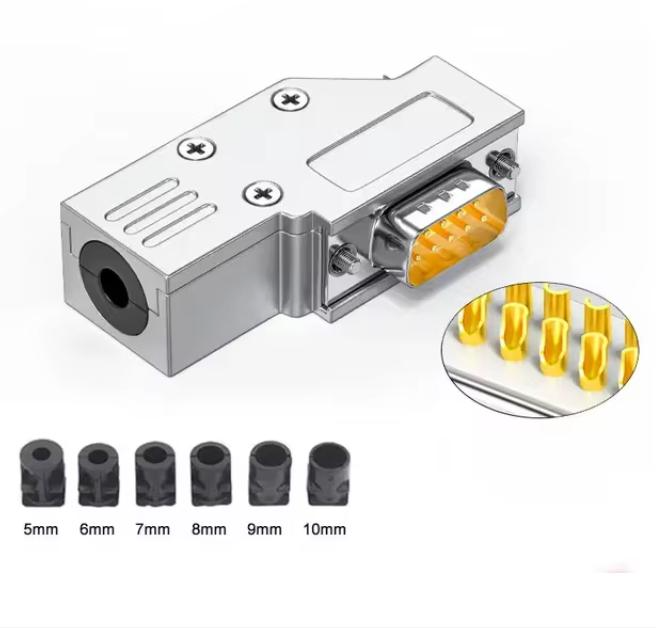

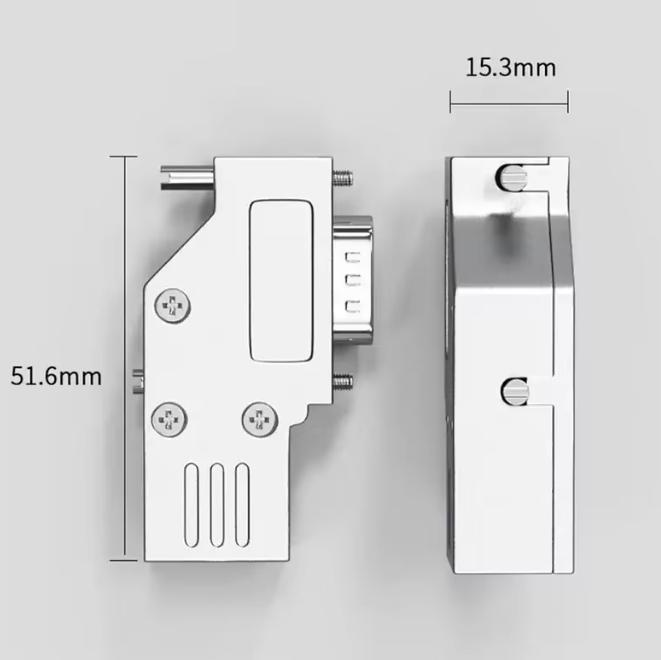

DB9 right angle type metal hood D-Sub 90 degree backshells male female connectors

TECHNICAL SPECIFICATIONS	TECHNICAL SPECIFICATIONS
Cable Exit Angle:	180°, 45°,75°,90°
Cable Diameter (mm):	0.118”–0.512” (3.00mm–16.00mm)
Material, Backshell:	Die-Cast Metal （Zinc Alloy）
Sizes/Positions:	Standard (9 pin, 15 pin, 25 pin, 37 pin, 50 pin) or High Density (15 pin, 26 pin, 44 pin, 62 pin, 78 pin)
Plating:	Nickel,Chrome,Black,silver surface
Special Features:	EMI/RFI Shield, Grommets,Rubber
Screws material:	Steel, Stainless steel
Mounting style:	Jack Screw;Slotted screw
Screws Type:	UNC#4-40 ; M3 ; M2.6 ; #2-56 ;
Salt spray test:	24Hour ; 48Hour ; 96Hour
Certification	ROHS Or REACH
Operating Temperature Range :	-40°C TO +120°C
Features:	• EMV complete metal hood for D-Sub connectors• Attenuation better than 40dB at 30 MHz to 1GHz
Applications:	Computers and Peripherals;Industrial Equipment;Telecommunications;Aerospace and Defense;Medical Devices;Test and Measurement;Audio/Video Equipment;

Cable entry: Straight Cable Entry

Cable Diameter(mm): 0.118”–0.512”

(3.00mm–16.00mm)

Material,Backshell: Die-Cast Metal(Zinc Alloy)

Pin count: 9.15.25.26.37.44.50.62.78.104Pin

Plating(Color): Nickel,Chrome

Special Features: EMI/RFI Shield

Hood parts: Grommets,Rubber,Clamp

Screws material: Steel,Stainless steel

Mounting style: Jack Screw;Slotted screw

Screws Type: UNC#4-40;M3;M2.5;#2-56
