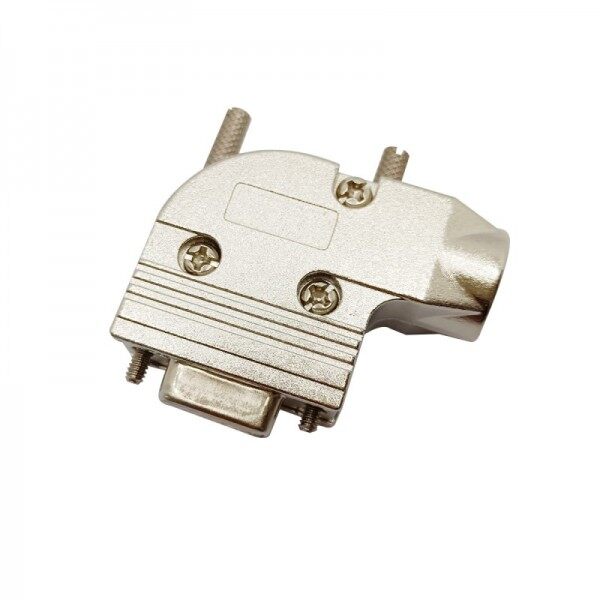

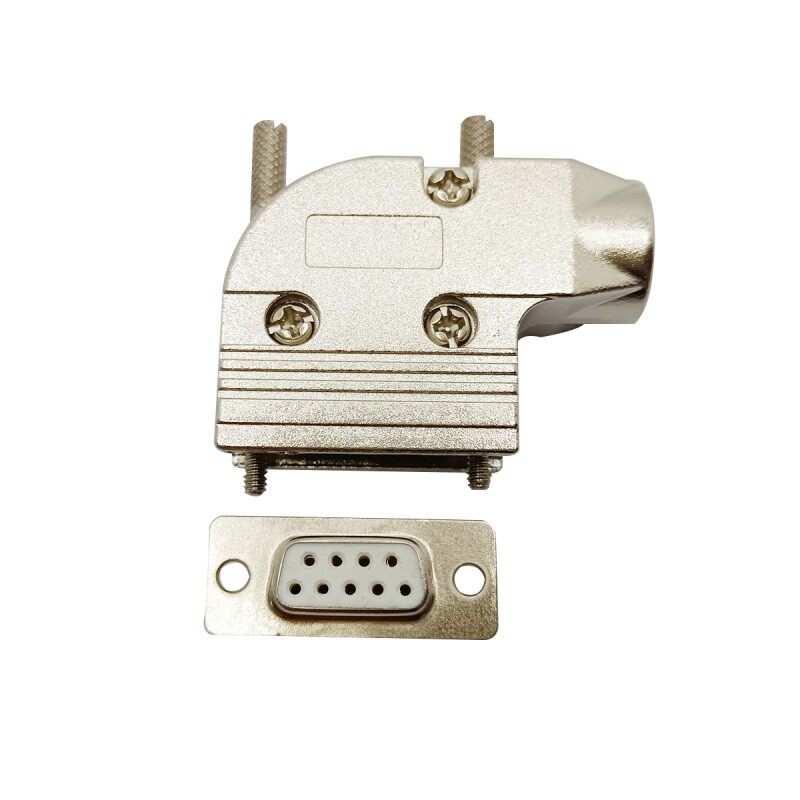

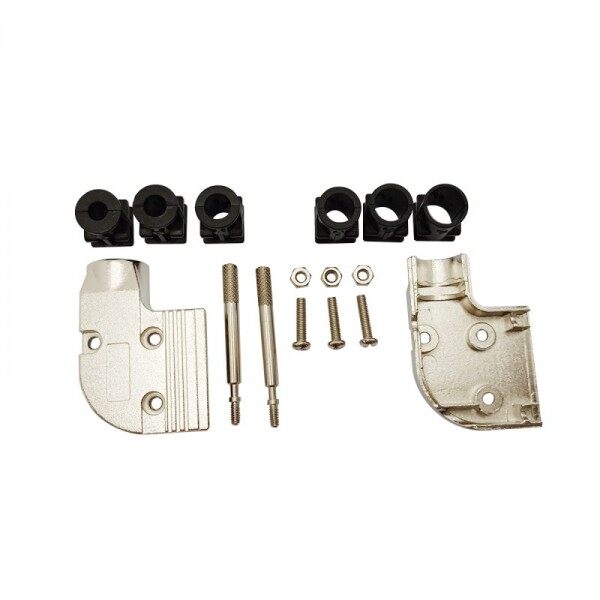

D-Sub hood 9-pole side entry full metal D-Sub Hoods / Backshells Connectors

TECHNICAL SPECIFICATIONS	TECHNICAL SPECIFICATIONS
Cable Exit Angle:	180°, 45°,75°,90°
Cable Diameter (mm):	0.118”–0.512” (3.00mm–16.00mm)
Material, Backshell:	Die-Cast Metal （Zinc Alloy）
Sizes/Positions:	Standard (9 pin, 15 pin, 25 pin, 37 pin, 50 pin) or High Density (15 pin, 26 pin, 44 pin, 62 pin, 78 pin)
Plating:	Nickel,Chrome,Black,silver surface

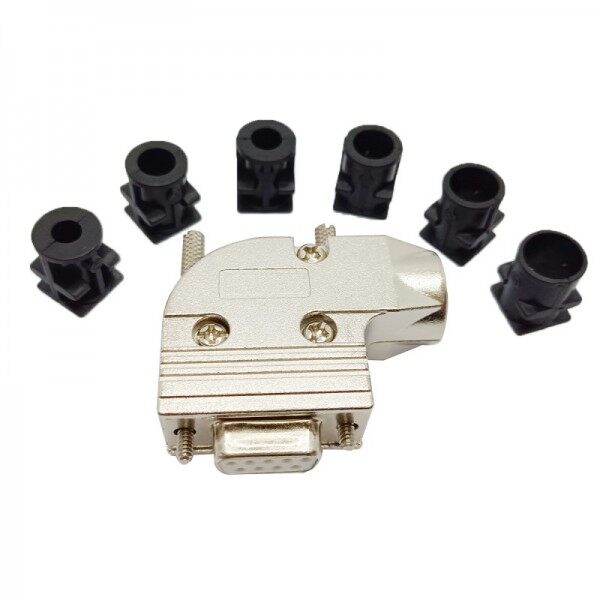

Special Features:	EMI/RFI Shield, Grommets,Rubber
Screws material:	Steel, Stainless steel
Mounting style:	Jack Screw;Slotted screw
Screws Type:	UNC#4-40 ; M3 ; M2.6 ; #2-56 ;
Salt spray test:	24Hour ; 48Hour ; 96Hour
Certification	ROHS Or REACH
Operating Temperature Range :	-40°C TO +120°C
Features:	• EMV complete metal hood for D-Sub connectors• Attenuation better than 40dB at 30 MHz to 1GHz
Applications:	Computers and Peripherals;Industrial Equipment;Telecommunications;Aerospace and Defense;Medical Devices;Test and Measurement;Audio/Video Equipment;
