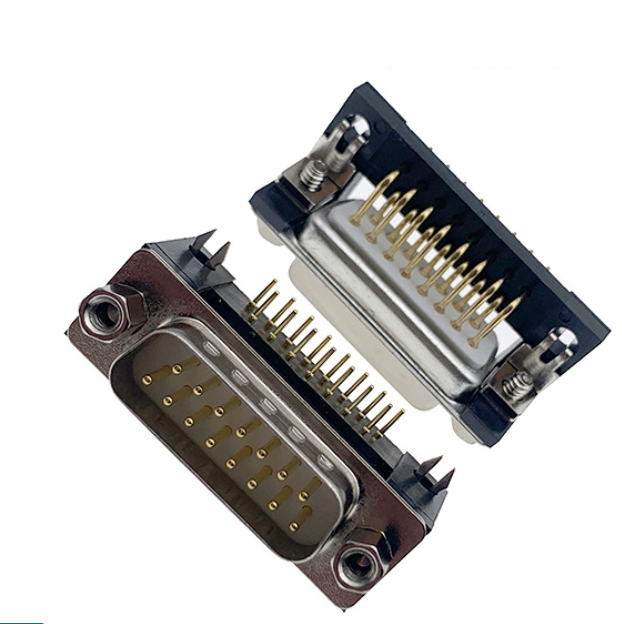

D-SUB DR 15Pin Male Connector With Lock Screw D-SUB DR Port

Materials And Finish
Shell Mateial:	SPCC,Plating:Ni Plated
Standard:	PBT+30%GF
Insulator Material :	Polyester UL94V-0
Contact Material :	Brass
Contact Finish :	Au Or Sn Over Ni .
Jack Screws :	Steel, Plating:Ni Plated with #4-40

Electrical Characteristics
Contact Current Rating :	5.0 AMP
Contact Resistance :	25MΩ Max at DC100mA
Withstand Voltage :	1000V AC/Minute
Insulation Resistance :	1000MΩ Min.
Operation Tempererature:	-55°C ~ +105°C .
Feature	•environmental protection
	•not easy to produce embroidery
	•not easy to deformation performance stability
